Stainless Steel Wire Balustrade Kits
We supply a large range of stainless steel fittings for use in wire balustrades.
All our kits are 316 grade Stainless Steel.
These kits include common combinations but we can also make up kits for sale to your own specifications if you want something different.
Most are made for use with 3.2mm wire since that is the most common size, but we can also supply these for 2.5mm, 4mm, 5mm, 6mm and 8mm wire.
If you are not sure on what you need you can view the Wire Balustrade Regulations or call us for chat about your specific requirements.
Kit 1 - Fork/Swage/Eye Screw for 3.2mm wire |
 |
- 1 x Fork/Swage Closed Turnbuckle (M6, 3.2mm)
- 1 x Fork/Swage Terminal (3.2mm)
- 2 x Eye Screws (M6, 40mm)
Price: $14.00 (includes GST)
Call (08) 9275 6246 to order.
Also available:
Kit 1B for 4mm wire $16.00
Kit 1C for 5mm wire $26.20
We can cut wire to size and hydraulic swage these fittings. Call for details.
|
Kit 2A - Fork/Fork/Saddles for 3.2mm wire |
 |
- 1 x Fork/Fork Closed Turnbuckle (M5, 3.2mm)
- 2 x Saddles (5mm)
- 2 x Thimbles (3.2mm)
- 2 x Ferrules (3.2mm)
Price: $9.60 (includes GST)
Call (08) 9275 6246 to order.
|
Kit 2B - Fork/Fork/Saddles for or 4mm wire |
|
|
- 1 x Fork/Fork Closed Turnbuckle (M6)
- 2 x Saddles (5mm)
- 2 x Thimbles (4mm)
- 2 x Ferrules (4mm)
Price: $12.90 (includes GST)
Call (08) 9275 6246 to order.
|

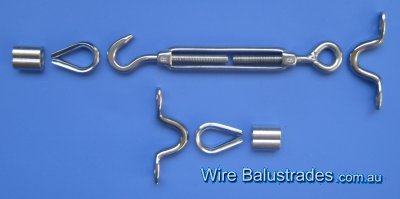

Kit 3 - Hook/Eye/Saddles for 3.2mm wire |
 |
- 1 x Hook/Eye Turnbuckle (M5)
- 2 x Saddles (5mm)
- 2 x Thimbles (3.2mm)
- 2 x Ferrules (3.2mm)
Price: $7.10 (includes GST)
Call (08) 9275 6246 to order.
|
Kit 4 - Hook/Eye/Saddles for 4mm wire |
|
|
- 1 x Hook/Eye Turnbuckle (M6)
- 2 x Saddles (5mm)
- 2 x Thimbles (4mm)
- 2 x Ferrules (4mm)
Price: $10.40 (includes GST)
Call (08) 9275 6246 to order.
|

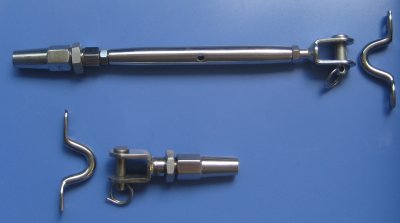

Kit 5 - Swageless terminal and turnbuckle for 3.2mm wire |
 |
- 1 x Swageless Fork Terminal - for 3.2mm Wire
- 1 x Swageless Fork Turnbuckle - for 3.2mm Wire
- 2 x Saddles (5mm)
Price: $34.50 (includes GST)
Call (08) 9275 6246 to order.
|
Kit 6 - Swageless terminal and tensioner for 3.2mm wire |
 |
- 2 x Swageless Terminal Threaded Stud - for 3.2mm Wire
- 2 x Hex Head Tensioner - 48mm, M6
Price: $35.40 (includes GST)
Call (08) 9275 6246 to order.
|
Kit 7 - Wood Screw/Swage for 3.2mm wire |
 |
- 2 x Terminal - M6 Wood Screw/Swage for 3.2mm wire
(left thread and right thread)
Recommended for short runs only.
Price: $6.00 (includes GST)
Call (08) 9275 6246 to order.
We can cut wire to size and hydraulic swage these fittings. Call for details.
|

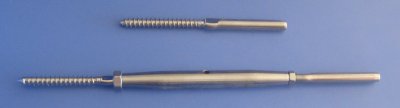

Kit 8 - Wood Screw/Swage for 3.2mm wire |
 |
- 1 x Lag screw/Swage Closed Turnbuckle (M6, 3.2mm)
- 1 x Lag screw/Swage Terminal (3.2mm)
Price: $12.95 (includes GST)
Call (08) 9275 6246 to order.
We can cut wire to size and hydraulic swage these fittings. Call for details.
|
Kit 9 - Flip lock and tensioner system |
|
- 1 x flip lock
- 1 x swage stopper for 3.2mm wire
- 1 x Swage Stud (M6, for 3.2mm wire)
- 1 x Hex Head Tensioner - 48mm, M6
Price: $10.40 (includes GST)
Call (08) 9275 6246 to order.
We can cut wire to size and hydraulic swage the Swage Stud for you. You can use a HX50 hand swage tool ($95) to crimp the swage stopper. Call for details.
|
|
