Stainless Steel Terminals
We supply a large range of stainless steel terminals for use in wire balustrades and other applications where you need to terminate wire.
All our terminals are 316 grade stainless steel.
Model : 00039-32-6 Terminal - Stud/Swage for 3.2mm wire
|
 |
Available in Right thread or Left thread. Use into rivet nuts with right thread one end and left thread the other to tension the wire. Or use with a hex head tensioner.
Must use an hydraulic swage tool. We can swage it for you here.
- Suitable for wire size 3.2mm
- 316 grade Stainless Steel
- Size M6
Price: $3.00 (includes GST)
Call (08) 9275 6246 to order.
Other Sizes Available:
M5 for 2.5mm wire $3.00
M6 for 4mm wire $4.00
M8 for 5mm wire $5.00
M12 for 6mm wire $9.40
M12 for 8mm wire $12.50
M20 for 10mm wire $28.00
M6 for 3.2mm wire with extra long 75mm thread $3.50
|

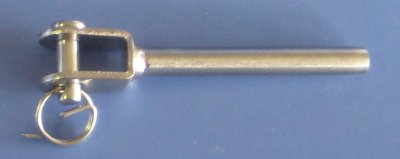

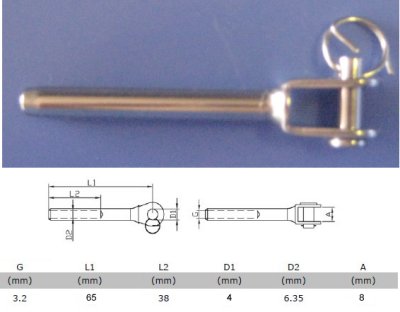

Model : 031-32 Terminal - Fork/Swage for 3.2mm wire
|
 |
Must use an hydraulic swage tool. We can swage it for you here.
- Suitable for wire size 3.2mm
- 316 grade Stainless Steel
Price: $3.00 (includes GST)
Call (08) 9275 6246 to order.
|
Model : 031-4 Terminal - Fork/Swage for 4mm wire
|
 |
Must use an hydraulic swage tool. We can swage it for you here.
- Suitable for wire size 4mm
- 316 grade Stainless Steel
Price: $4.00 (includes GST)
Call (08) 9275 6246 to order.
|
Model : 031-5 Terminal - Fork/Swage for 5mm wire
|
|
Must use an hydraulic swage tool. We can swage it for you here.
- Suitable for wire size 5mm
- 316 grade Stainless Steel
Price: $5.70 (includes GST)
Call (08) 9275 6246 to order.
Other Sizes Available:
For 2.5mm wire $3.00
For 3.2mm wire $3.00
For 4mm wire $4.00
For 5mm wire $5.70
For 6mm wire $12.75
For 8mm wire $16.75
For 10mm wire $25.00
|

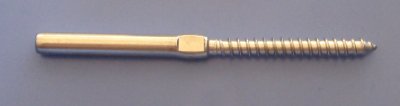

Model : 04039-32-6 Terminal - Wood Screw/Swage for 3.2mm wire
|
 |
Available in Right thread or Left thread. Use right thread one end and left thread the other to tension the wire. Recommended for short runs only.
Must use an hydraulic swage tool. We can swage it for you here.
- Suitable for wire size 3.2mm
- 316 grade Stainless Steel
- Size M6
Price: $3.00 (includes GST)
Call (08) 9275 6246 to order.
|
Terminal - Eye/Swage
|
 |
Must use an hydraulic swage tool. We can swage it for you here. Other sizes are available.
- 316 grade Stainless Steel
Prices:
Model : 46525 - for wire size 2.5mm - $2.50
Model : 46503 - for wire size 3mm or 3.2mm - $3.00
Model : 46504 - for wire size 4mm - $4.00
Model : 46505 - for wire size 5mm - $5.00
Call (08) 9275 6246 to order.
|

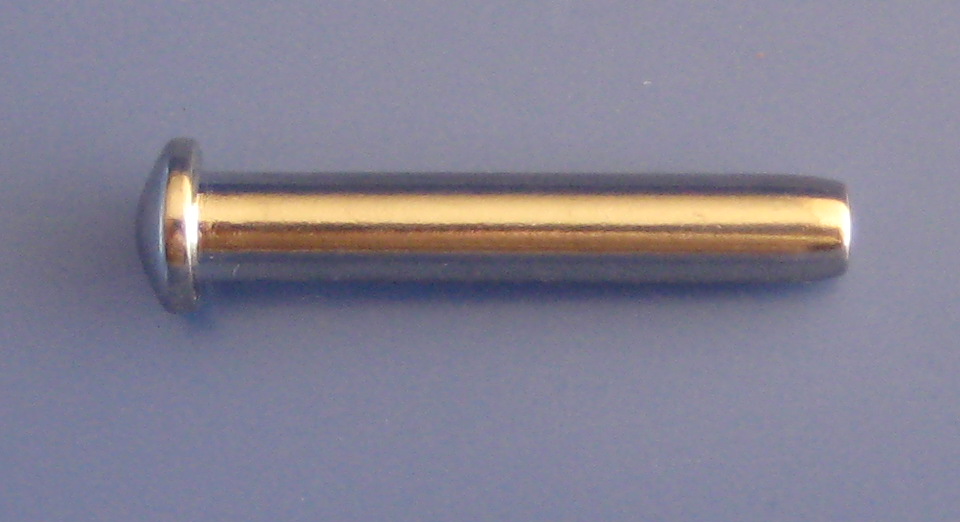

Model : 058-3 Dome Head End Terminal for 3.2mm wire
|
 |
We can cut wire to size and hydraulic swage the terminal for you. Call for details.
- 316 grade Stainless Steel
Prices:
Model : 058-3 - for wire size 3.2mm - $3.00
Model : 058-4 - for wire size 4mm - $3.30
Call (08) 9275 6246 to order.
|
Model : 7808 Flip Lock and SwageTerminal for 3.2mm wire
|
 |
Idea for use in end posts or where access is restricted.
A streamlined terminal with no visible fittings once installed.
We can cut wire to size and swage the Swage terminal for you. You can use a HX50 hand swage tool ($120) to crimp the swage terminal. Call for details.
- Suitable for wire size 3.2mm
- Flip lock is 304 grade
- Swage terminal is 316 grade
Price: $3.50 (includes GST)
Call (08) 9275 6246 to order.
|
|
|
|
|
|
|
